For sound insulation and safety
Perfect solutions for safety at the workplace. Protected work environment for welding with and without sound insulation.
- 2 design versions
- 800 x 800 mm installation plate
- 4 HiQ product types
Occupational safety is the highest priority. Dangers such as noise or unintended interventions in the workspace can be prevented by the ULTRASAFE concepts in the smallest spaces. Flexibly deployable in production, the ULTRASAFE can be set up on existing work tables and are immediately usable. Both ULTRASAFE variants provide options for modular attachment of various accessories. They can also be combined with any of the ultrasonic welding machine models in the HiQ product range.
ULTRASAFE LC stands for operator safety. The Light Curtain concept provides safety for the operator and also helps prevent intervention by third parties. TThe access area is protected by a safety light curtain that can be configured to start automatically. After manual component loading of the machine, it starts automatically as soon as the light curtain has been left, thus eliminating the need for additional manual start initiation.
- Light curtain for maximum user safety
- Ergonomic mounting of the operating device
- Maintenance door at the rear with attached electrical cabinet
- Equipment for transport by crane
| ULTRASAFE | LC-Version |
|---|---|
| Footprint (W x D) [mm] | 800 x 800 |
| Sound insulation | - |
| Safety cut-off circuit | light curtain |
| Opening stroke [mm] | - |
| Opening width [mm] | 580 |

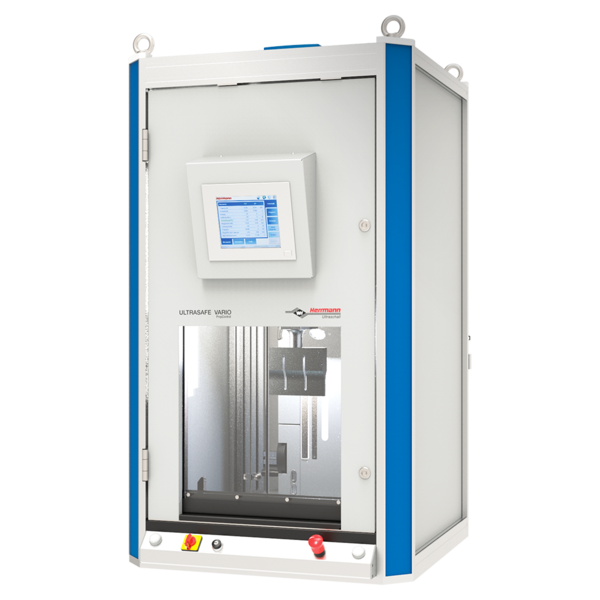

With its type, the ULTRASAFE SP offers a space-saving sound insulation concept for the whole HiQ machine series. Reduces sound emissions according to the applicable regulations of the laws on noise control, allowing flexible use in production.
- Lifting door with safety contact strip for maximum user safety
- Work space illumination for precise parts handling and visual quality control
- Maintenance door at the front and rear (with attached electrical cabinet)
- Equipment for transport by crane
| ULTRASAFE | SP-Version |
|---|---|
| Footprint (W x D) [mm] | 800 x 800 |
| Sound insulation | x |
| Safety cut-off circuit | saftey door |
| Opening stroke [mm] | 450 |
| Opening width [mm] | 450 |
