Breaking through with welding machines of the HiQ series
Benefit from the know-how gained from thousands of solved applications and experience the trendsetting HiQ machine generation! Adapted to the needs of our customers, it delivers perfect welding results with unprecedented flexibility. With machines of the HiQ series, you will find the right solution for your project and your budget – and always with quality "Made in Germany"!
Enjoy the benefits of the HiQ machine generation for a faster, safer and more economical welding experience than ever before:

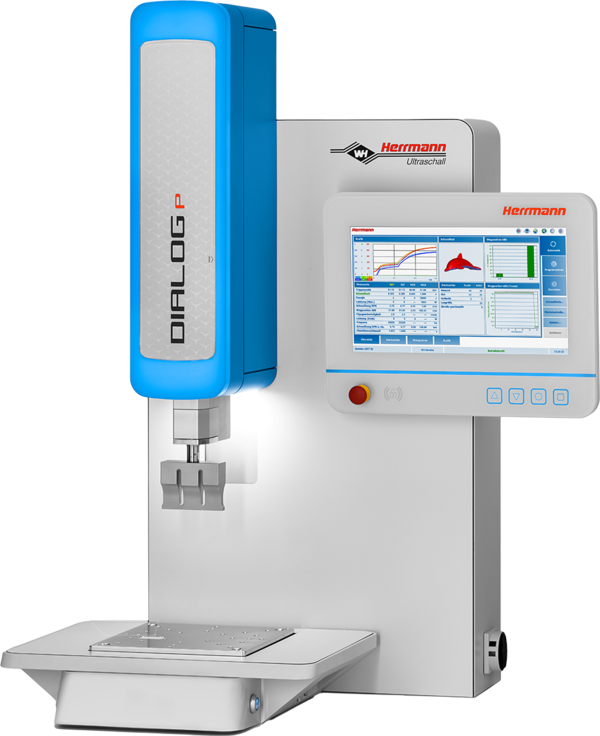

The HiQ P – for highest precision
For gentle welding of sensitive components or materials, it is necessary to use the lowest possible welding forces. The HiQ P is ideally suited for this, as it reliably provides reproducible, strong and precise welding results even at reduced forces.
- Lowest forces
- Reproducible welding results
- Compact, space-saving design
Our intelligent software provides you with an intuitive and user-friendly system for the operation of your HiQ machine.
The precise process control options and graphical visualization of parameters make a decisive contribution to reducing your waste and increasing the efficiency of your manufacturing.
| Machine type | HiQ DIALOG P | HiQ VARIO P |
|---|---|---|
| Frequency [kHz] | 35 | 35 |
| Control | DIALOG | VARIO |
| Generator power [W] | 1200 | 1200 |
| Outside dimensions [mm] | 1140x879x640 | 1140x879x640 |
| Drive | SpeedControl | PropControl |
| Weld force min./max.* [N] | 10-650 | 10-650 |
| Max. Stroke [mm] | 100 | 100 |
| Throat depth to center of sonotrode [mm] | 180 | 180 |
| Electrical height adjustment [mm] | 200 | 200 |

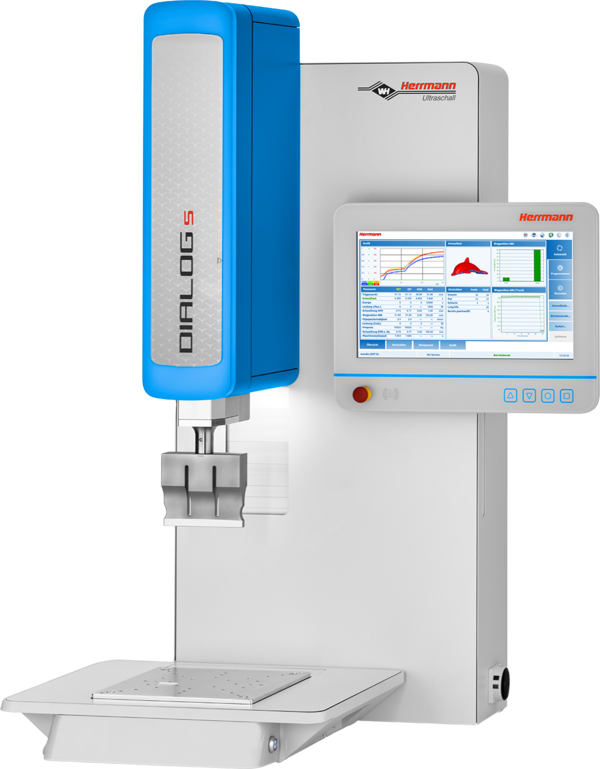

The HiQ S – pure flexibility
Thanks to the large workspace, the HiQ S is the ideal welding solution for both small and large-volume components. A high level of configurability and flexible control ensure an excellent user experience.
- Wide range of variants
- Reliable welding result
- Flexible use in production
Our intelligent software provides you with an intuitive and user-friendly system for the operation of your HiQ machine.
The precise process control options and graphical visualization of parameters make a decisive contribution to reducing your waste and increasing the efficiency of your manufacturing.
| Machine type | HiQ DIALOG S | HiQ VARIO S |
|---|---|---|
| Frequency [kHz] | 20 | 20 |
| Control | DIALOG | VARIO |
| Generator power [W] | 1200 / 2400 / 4800 / 6200 | 1200 / 1800 / 2400 / 4800 / 6200 |
| Outside dimensions [mm] | 1483x982x760 | 1483x982x760 |
| Drive | SpeedControl | PropControl |
| Weld force min./max.* [N] | 30-2490 | 30-2490 |
| Stroke [mm] | 150 | 150 |
| Throat depth to center of sonotrode [mm] | 260 | 260 |
| Electrical height adjustment [mm] | 400 | 400 |
More than just design
Experience the welding workplace of the future today with machines from the HiQ series:
- The control system communicates with you using a customizable user interface.
- An intuitive arrangement of the controls ensures quick access to all important functions.
- Illuminated elements provide clear visual machine status information.
Awarded the IF Design Award 2021 and the Good Design Award 2020: the design of the HiQ offers a new dimension of communication and ergonomics – for perfect and reproducible joining results.
Guided tool change
Safe, fast, supported: While tool changing used to be a time-consuming task and involved a number of risks, with the HiQ generation of machines it is done in the shortest possible time. A sophisticated assistant and a clever clamping system help you to do this.
Customizable. User-friendly. Digital.
Individually customizable to your needs: The HiQ is the first ultrasonic welding machine made in series production with the flexibility of a custom machine. For you, this means maximum usability.
Do your requirements change in the course of production? All components and functions of the HiQ as well as the control system can be adapted to your requirements – conveniently and at any time.
All machine components, connected devices and their behavior are digitally represented in the HiQ. This allows you to set up the machine faster and easier than ever before.
A smart bench top
With the HiQ machine generation, you get more than a welding machine that performs its basic tasks - you get a colleague that supports you in the safe and correct implementation of your work.
For this purpose, a wide variety of sensors and tools can be connected to the HiQ, which will help the machine to warn you of errors in the production process or even prevent them in the first place.
For example, if a component is not inserted in the correct position or if a component is missing, a camera can detect this and prevent the welding process. This reduces your error rate in production and reduces rejects.
"With the HiQ, Herrmann has developed a user-friendly and process-reliable welding solution. The simple approach to creating a new welding program has completely convinced me. Tool changes are also quick and uncomplicated on the HiQ machine generation."
Norbert Ennemoser, process owner at Ultra Reflex GmbH
